Item No.

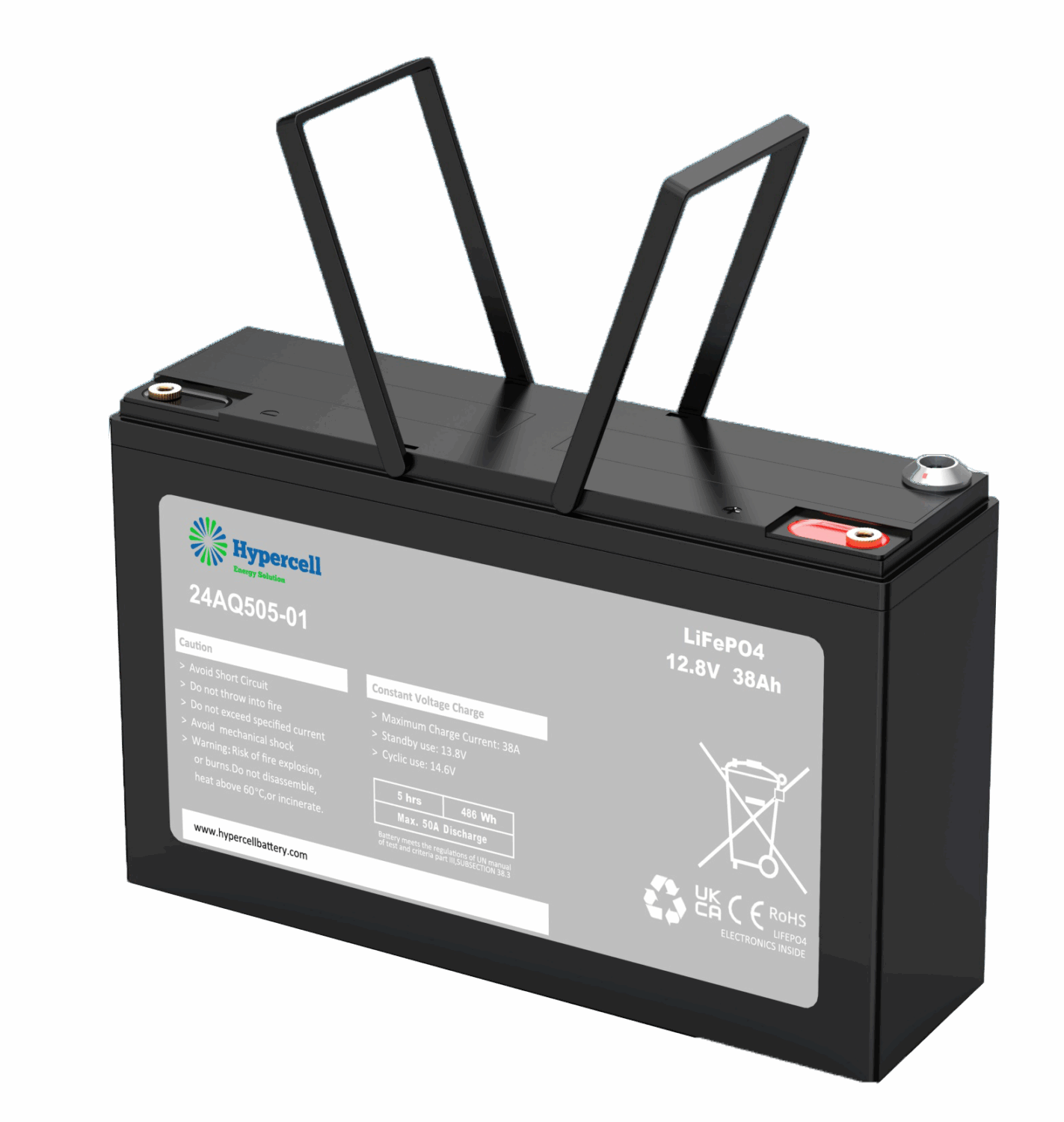

24AQ505-01
* Nominal voltage / Nominal capacity: 12.8V / 38Ah
* Stored engergy: 484.4Wh
* Maximum output power: 832W
* Charge voltage: 14.4V ± 0.2V
* Maximum charge current: 38A
* BMS charge cut-off voltage: 15.0V (3.75V/cell)
* Maximum continuous discharge current: 50A
* Peak discharge current: 65A for 30s
* BMS discharge cut-off voltage 8.8V (2.4V/cell)
* Exp. cycle life: 3000 cycles
* Charge temperature range: 0℃~ +60℃
* Discharge temperature range: -20℃~ +60℃
* Casing material: ABS with M5 bolt
* Dimensions: L 267 mm x W 72 mm x H 172 mm
* Weight: 4.75 kg
* Communication: CAN 2.0 A/B
* Water proof: IP67
