Item No.

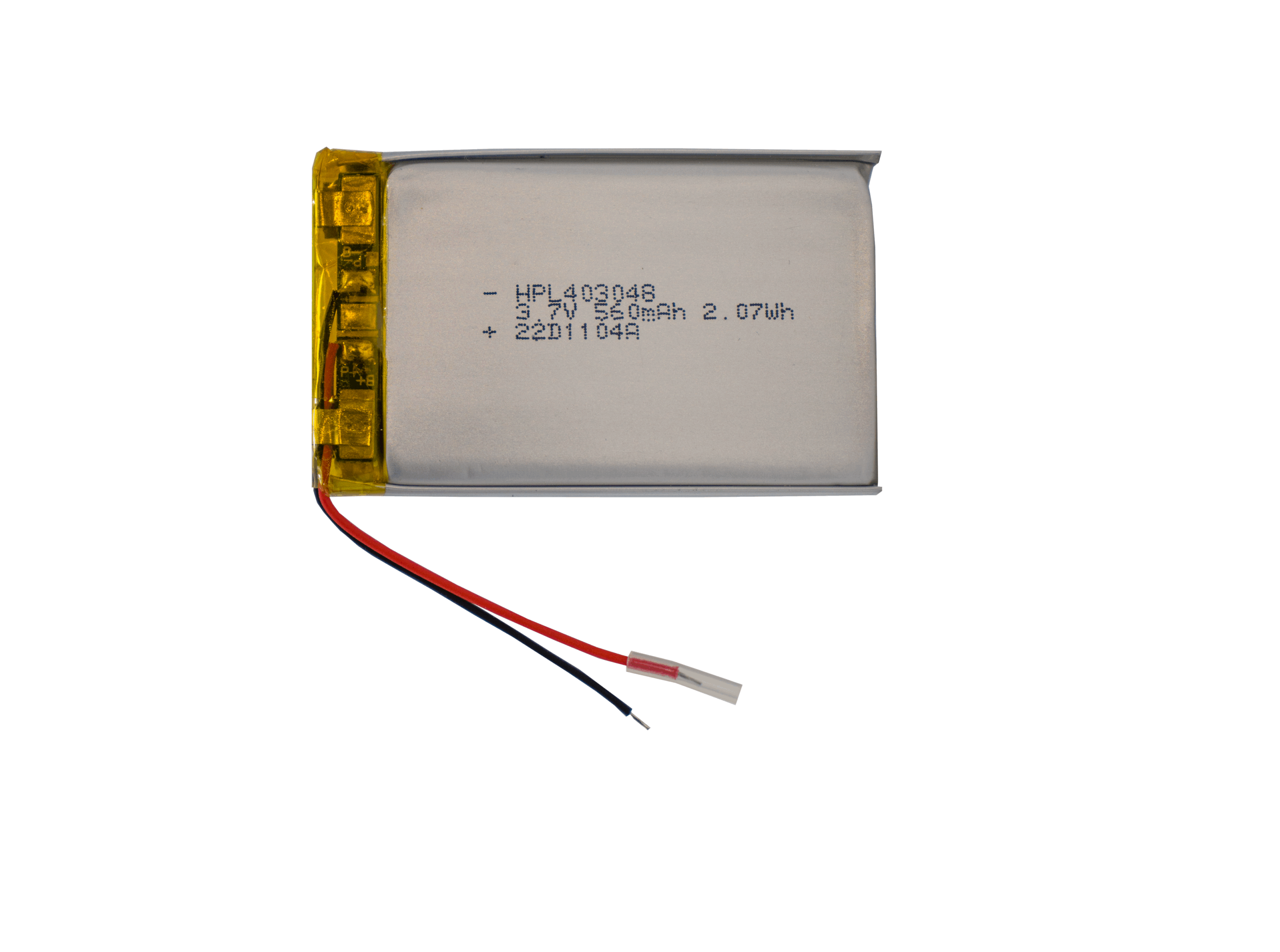

HPL403048-560mAh
- Battery Pack: 1S1P
- Normal Voltage: 3.7V
- Normal Capacity: 560mAh
- Standard Discharge: 0.2C (continuously)
- Maximum Discharge: 1C (continuously)
- Charging Temperature Range: 0~45℃
- Discharge Temperature Range: -20~60℃
- Internal Impedance: ≤180mΩ
- PCM Solution: Seiko IC
- Over-charge Protection Voltage: 4.25 ± 0.020V/Cell
- Over-discharge Protection Voltage: 3.00 ± 0.05V
- Over Current Protection: 1~3A
→
Item No.

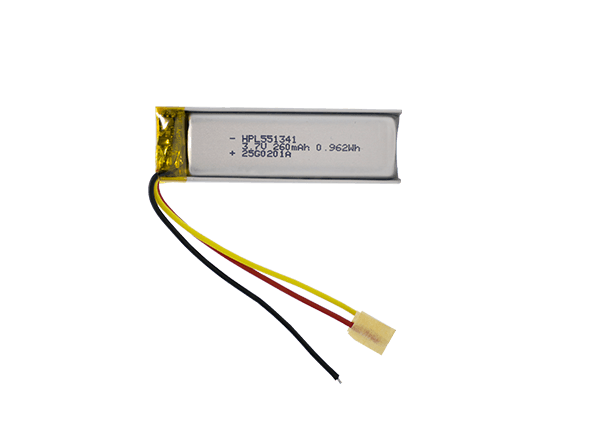

HPL551341-260mAh
- Battery Pack: 1S1P
- Normal Voltage: 3.7V
- Normal Capacity: 260mAh
- Standard Discharge: 0.2C (continuously)
- Maximum Discharge: 1C (continuously)
- Charging Temperature Range: 0~45℃
- Discharge Temperature Range: -20~60℃
- Internal Impedance: ≤220mΩ
- PCM Solution: Seiko IC
- Over-charge Protection Voltage: 4.25 ± 0.020V/Cell
- Over-discharge Protection Voltage: 3.00 ± 0.05V
- Over Current Protection: 1~3A
